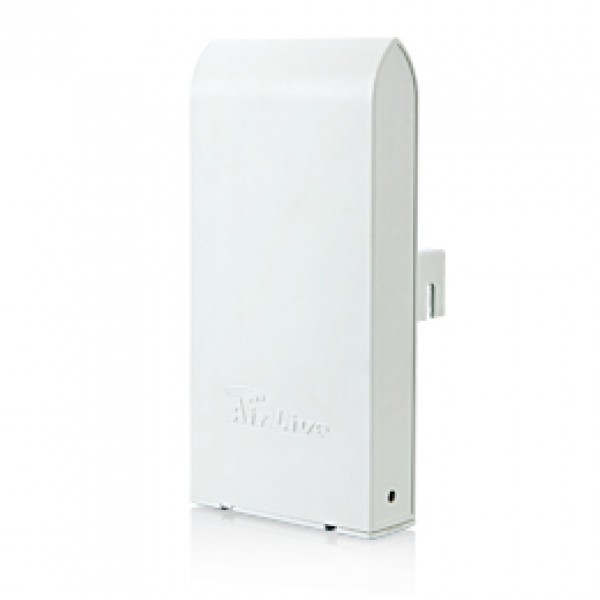

Product Detail
| Feature |  9 Wireless Operation Modes Up to 26dBm output power (20dBm in EU) Built-in 10dBi Patch antenna R-SMA antenna connector, detachable Antenna ClearSignal Interference Resistant Technology Site Survey Connection Wizard 4 Levels LED for antenna alignment IP65 Weather Proof housing HTTP, HTTPS, SSH Managements 12V Passive PoE System |
||
 Hardware |
802.11g/b Radio 4MB Flash, 16MB DRAM 12V Passive PoE Kit IP-65 Weather Proof Housing 4 Color LEDs Reset Button 1x 10/100Mbps PoE Port 1 x R-SMA Antenna Connector |
||
| Antenna |
Built-in 10 dBi patch antenna Polarization : Vertical Antenna Angle : Horizontal 70”, Vertical 38”. R-SMA connector for external antenna Software switch between internal and external antennas |
||
| Frequency Band |
USA (FCC) 11 Channels: 2.412GHz~2.462GHz Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz |
||
| Power over Ethernet |
Power Adapter Voltage : input 100~240Vac/50~60Hz, output 12V/1A Advance Passive PoE (Accept 12 to 22 volts) POE Adapter, DC Injector provided POE port built-in on the PCB |
||
| Transmission Rates |
Data Rate: 54, 48, 36, 24, 18,11, 5.5, 2, 1 Mbps |
||
| Modulation Technology |
11g Orthogonal Frequency Division Multiplexing (64QAM,16QAM, QPSK, BPSK) 11b Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK) |
||
| Output Power |
20dBm(EU), 23dBm(FCC), 26dBm(South America) Adjustable in 6 levels |
||
| Receiver Sensitivity |
Rx Senstivity @ 25°C |
||
| IEEE 802.11b Min (dBm) |
1Mbps -95 2Mbps -91 5.5Mbps -90 11Mbps -86 |
||
| IEEE 802.11g Min (dBm) |
6Mbps -86 9Mbps -86 12Mbps -85 18Mbps -83 24Mbps -81 36Mbps -77 48Mbps -73 54Mbps -71 |
||
| Mode |
AP, AP Router, WDS Repeater, Universal Repeater Client Mode, WISP Router, WDS + Universal Repeater WDS Bridge, WDS Station |
||
| Software |
9 Wireless Operation Mode Clear Signal Interference Resistant Technology Web, HTTPS, SSH and Telnet Managements Interface Bandwidth Control IP/MAC Bandwidth Control RSSI LED for Antenna Alignment DHCP Relay Agent Supported Up to 40 Access Control List ACK Timeout Adjustment Site Survey Connection Wizard Ping Watchdog Signal Survey for Antenna Alignment Static Route and RIP Routing Client Isolation, Watchdog, and TX Power Regulation 40 MAC Access Control List |
||
| Environmental |
Operating temperature: -20~60℃ Operating humidity (non-condensing): 20~80% Storage temperature: -20~65℃ Storage humidity: 95% Max |
||
| Certificate |
FCC, CE |
||
| Product Size ( L x W x H (mm) ) |
210 x 100 x 32 mm |
||
